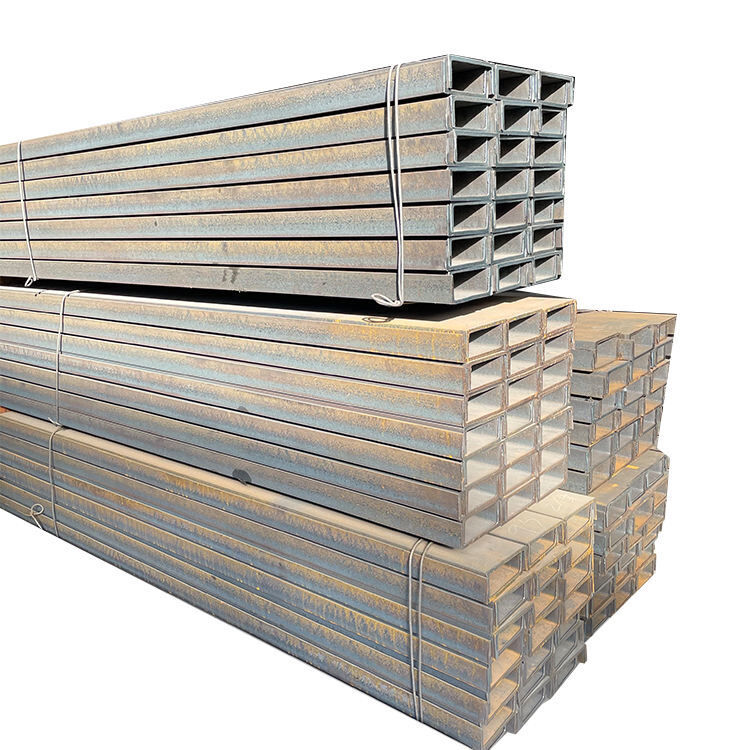

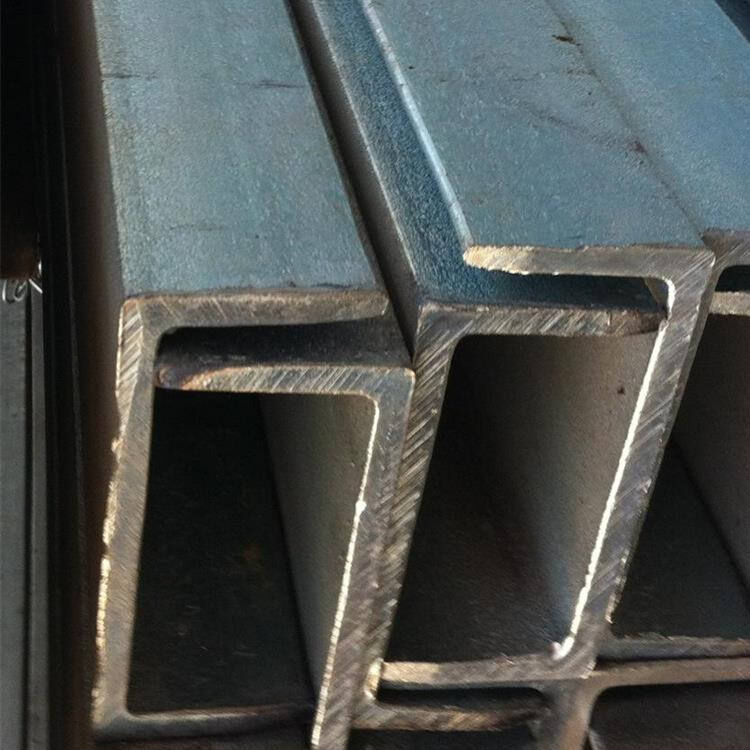

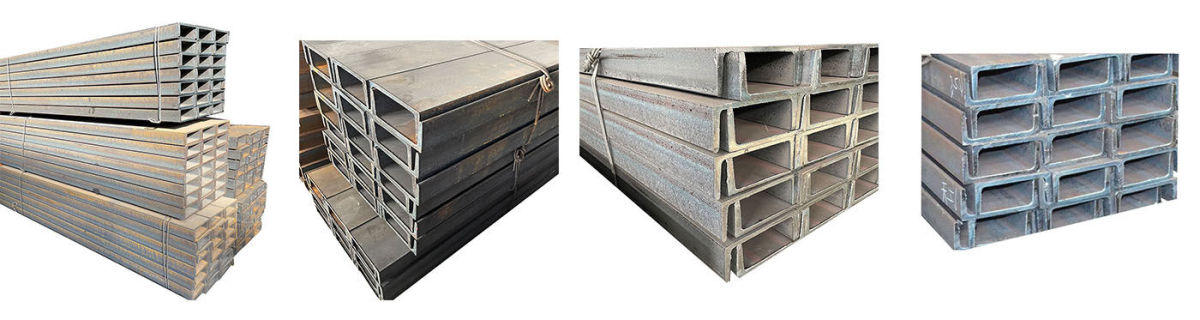

Carbon Steel Channel Bar
Steel channel is a uniquely shaped, hot rolled structure steel product with inner radius corners that is ideal for industries such as residential and commercial construction, general fabrication, repairs, and manufacturing. The C-shape of A36 steel channel is perfect for added strength and rigidity over steel angle when a project's load is vertical or horizontal. Structural steel channel is also easy to welded , cut, form and machine with the proper equipment and knowledge.
Specification
| Product name: | Carbon Steel C/U/Z Beam |
| Standard | JIS, AiSi, ASTM, GB, DIN, EN |
| Application | Purlins and wall beams used in steel structure construction can also be self-assembled into lightweight roof truss, bracket and other building components,In addition, can also be used in the mechanical light industry in the manufacture of columns, beams and arms |
| Grade | ASTM A106, ASTM A53, API 5L Gr.B, DIN17175, DIN1629 |
| Brand Name | DeNuo |
| Length | 1-12m |
| Model Number | Q235/Q355/SS400/ST37-2 / ST52 /Q420/ Q460/S235JR/ S275JR/S355JR |
| Shape | C/U/Z Shape |
| Certification | ISO, BV, SGS, MTC |
| Tolerance | ±0.01% |
| Surface Treatment | Black Painted, PE Coated, Galvanized or Customized All Available |
| Place of Origin: | China |
| Application: | Industries |
| Tolerance: | ±0.01% |
| Technique: | Hot Rolled |
Parameter
| Channel Bar Specification |
| Size | Height (MM) | Width (MM) | Web Thk (MM) | Weight (KG/M) | Size | Height (MM) | Width (MM) | Web Thk (MM) | Weight (KG/M) |
| 5 | 50 | 37 | 4.5 | 5.438 | 36b | 360 | 98 | 11 | 53.466 |
| 6.3 | 63 | 40 | 4.8 | 6.634 | 36c | 360 | 100 | 13 | 59.118 |
| 6.5 | 65 | 40 | 4.8 | 6.709 | 40a | 400 | 100 | 10.5 | 58.928 |
| 8 | 80 | 43 | 5 | 8.045 | 40b | 400 | 102 | 12.5 | 65.204 |
| 10 | 100 | 48 | 5.3 | 10.007 | 40c | 400 | 104 | 14.5 | 71.488 |
| 12 | 120 | 53 | 5.5 | 12.059 |
|
|
| 12.6 | 126 | 53 | 5.5 | 12.318 | 50 | 25 | 4 | 3.46 |
| 14a | 140 | 58 | 6 | 14.535 | 50 | 25 | 5 | 3.86 |
| 14b | 140 | 60 | 8 | 16.733 | 250 | 90 | 9 | 34.6 |
| 16a | 160 | 63 | 6.5 | 17.24 | 75 | 40 | 3.8 | 5.3 |
| 16b | 160 | 65 | 8.5 | 19.752 | 75 | 40 | 5 | 6.92 |
| 18a | 180 | 68 | 7 | 20.174 | 76 | 38 | 5.1 | 6.7 |
| 18b | 180 | 70 | 9 | 23 | 100 | 50 | 3.8 | 7.3 |
| 20a | 200 | 73 | 7 | 22.64 | 100 | 50 | 5 | 9.36 |
| 20b | 200 | 75 | 9 | 25.777 | 102 | 51 | 6.1 | 10.42 |
| 22a | 220 | 77 | 7 | 24.999 | 125 | 65 | 6 | 13.4 |
| 22b | 220 | 79 | 9 | 28.453 | 127 | 64 | 6.4 | 14.9 |
| 25a | 250 | 78 | 7 | 27.41 | 150 | 75 | 6.5 | 18.6 |
| 25b | 250 | 80 | 9 | 31.335 | 150 | 75 | 9 | 24.0 |
| 25c | 250 | 82 | 11 | 35.26 | 152 | 76 | 6.4 | 17.9 |
| 28a | 280 | 82 | 7.5 | 31.427 | 152 | 89 | 7.1 | 23.8 |
| 28b | 280 | 84 | 9.5 | 35.823 | 200 | 80 | 7.5 | 24.6 |
| 28c | 280 | 86 | 11.5 | 40.219 | 250 | 90 | 9 | 34.6 |
| 30a | 300 | 85 | 7.5 | 34.463 | 300 | 90 | 9 | 38.1 |
| 30b | 300 | 87 | 9.5 | 39.173 | 300 | 90 | 10 | 43.8 |
| 30c | 300 | 89 | 11.5 | 43.883 | 125 | 65 | 5.5 | 14.8 |
| 36a | 360 | 96 | 9 | 47.814 | 150 | 75 | 5.5 | 17.9 |
Product Advantage
Channel steel is a relatively new economical construction steel. Its section style is economical and applicable, and its mechanical properties are good. Its advantages are fully displayed on the rolled section. Compared with general I-beam, it has the advantages of large section modulus, light weight, metal saving, and can reduce the building structure by 30-40%. Because the inside and outside of the leg are parallel, the leg is right angle, and the parts are assembled, which can save 25% of the welding and riveting workload. It is often used in large buildings (such as factory buildings, high-rise buildings, etc.), supports, root piles, etc.
The channel steel can be processed into T-shaped steel, and the honeycomb beam can be combined into various sections, which greatly meets the needs of engineering design and construction. Channel steel is mainly used for engineering, plant setting, machinery setting, bridges, highways, houses, etc; Good mechanical and physical functions, stability, energy conservation and environmental protection.
Product Quality Inspection
Package And Shipment
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept third party inspection.
Q:How do we trust your company?
A:We specialise in steel business for years as golden supplier on Alibaba, headquarter locates in Jinan, Shandong province, you are welcome to investigate in any ways, by all means, we have CE and ISO9001 certificate, quality can be guaranteed, the most important point is that we ship enough weight as per the order.
For more details, please email us!
